Ubwoko bukonjesha amazi

Ibisobanuro bigufi:

Kumenyekanisha ibicuruzwa HTS-W ikurikirana inganda zikoreshwa cyane cyane mubikorwa bya Plastike & Rubber;Irashobora kugenzura neza ubushyuhe bwububiko no kugabanya uruziga, kongera ubwiza bwibicuruzwa no kuzamura umusaruro.Zikoreshwa kandi cyane mubikorwa bya Metal, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor test, jet yamazi, coating Vacuum, Constructi ...


Ibicuruzwa birambuye

Ibipimo byibicuruzwa

gupakira no gutwara

icyemezo

faq

https://youtu.be/QErvGl_C3tU



Kumenyekanisha ibicuruzwa


Uruganda rwa HTS-W rukoreshwa cyane mubikorwa bya Plastike & Rubber;Irashobora kugenzura neza ubushyuhe bwububiko no kugabanya uruziga, kongera ubwiza bwibicuruzwa no kuzamura umusaruro.Zikoreshwa kandi cyane mubikorwa bya Metal, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor test, Indege y'amazi, coating Vacuum, Ubwubatsi na Gisirikare.



Gusaba

INTWARI Z'INTWARI-TECH zitanga agaciro kubintu byinshi bitandukanye hamwe nimbaraga zongerewe imbaraga.

Hagati hamwe nini nini yo gukonjesha inganda
Sisitemu yo guhumeka hagati
Icyumba gikonje, icyumba cyubushyuhe

screw chiller

Ibishushanyo mbonera

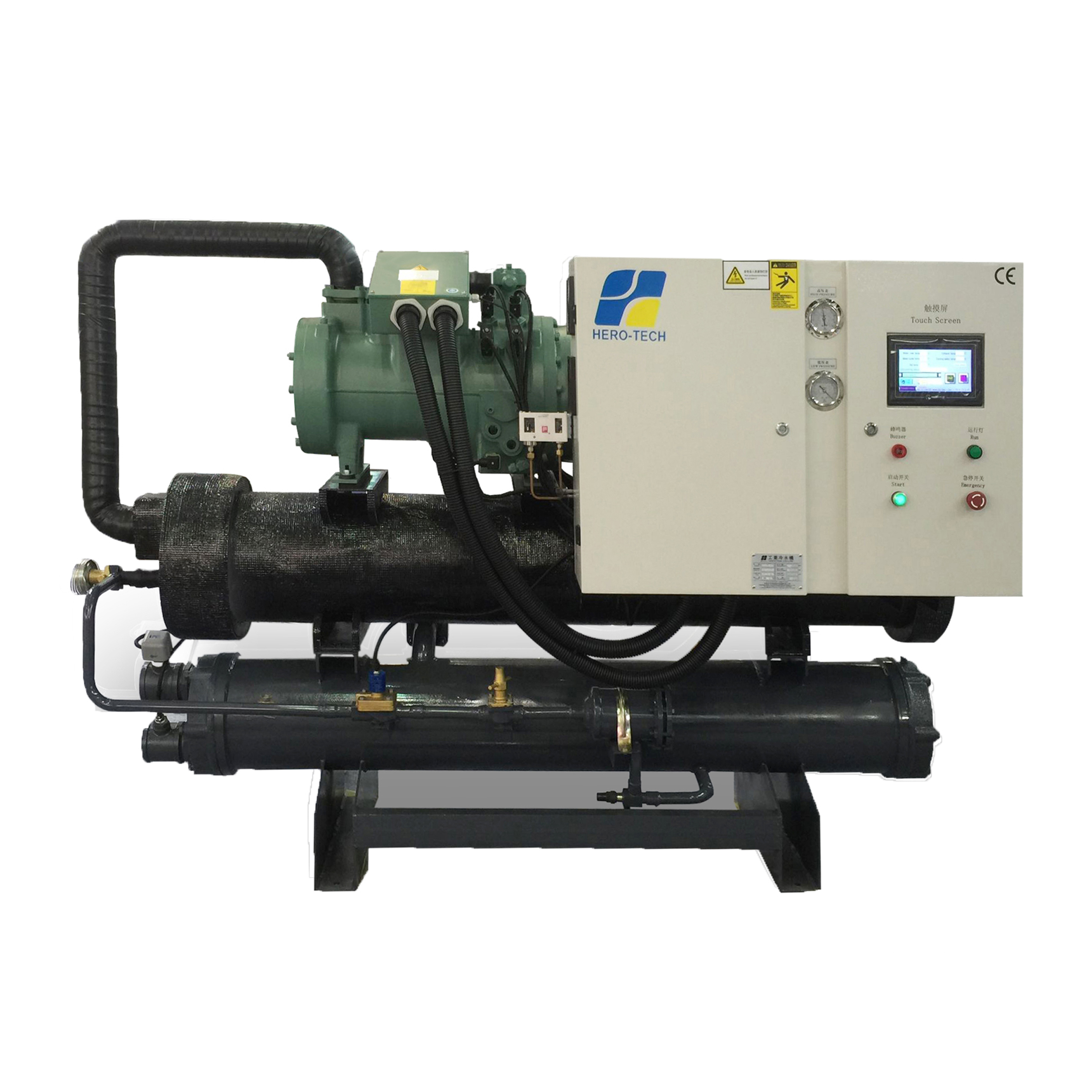

Birazwi neza Compressor
-Unit ifata Ubudage BITZER cyangwa Tayiwani HANBELL yerekana igice cya hermetic screw compressor.Ibishya 5 kugeza kuri 6 byemewe bya rot rotor profil hamwe nibikorwa byiza.

-4 ubushobozi bwo kugenzura ubushobozi, 25% -50% -75% -100%.
-Guhindura ubushobozi butagira umupaka cyangwa bugenzurwa cyane kugenzura ubushobozi, buranga ingufu zikora neza, zihamye kandi zituje.
Byinshi byateye imbere byemewe muburyo bwo gukora neza.
-Yubatswe muburyo bwuzuye bwogukurikirana no gukingira harimo kugenzura ubushyuhe bwa moteri yubushyuhe, kugenzura ibyiciro bikurikirana, gusubiramo intoki gufunga, sensor yubushyuhe bwa peteroli.
-Ubunini bwa firigo kugirango uhitemo, harimo R134A, R407c na R22 (R404A, R507c ubisabwe).

Sisitemu yo kugenzura microprogramming
-Inganda za PLC zagizwe hamwe hamwe na sisitemu yo kugenzura ubushobozi, kugenzura neza.
-Gukingira hamwe ubushyuhe buke, umuvuduko mwinshi / muke, kurwanya ubukonje, icyiciro kibura, anti-fase, kurenza urugero, moteri hejuru yubushyuhe, itandukaniro ryamavuta, guhinduranya ibintu, gutangira ubukererwe.
-Ururimi rwimikorere idahwitse, menu iyobora, ibice bikora leta byoroshye guhinduka.


Kwiyubaka byoroshye, kwiruka byizewe
-Gufata hafi gutangira, gabanya ingaruka kumashanyarazi.
Gukora neza kandi bifite umutekano, kunyeganyega hasi, byoroshye kwishyiriraho.
-Imiterere yoroheje, umwanya muto ukenera n'umucyo muburemere, byoroshye gutwara no kwishyiriraho.
-Byuzuye insinga, byagenzuwe kandi byageragejwe mbere yo gutanga, kubika igihe cyo kwishyiriraho nigiciro.
· Igikonoshwa nigituba hamwe na kondenseri, umugozi mwiza utukura wumuringa utukura (guhindura ibintu kubisabwa).

· Igenzura rya Siemens PLC, LCD ikora ya ecran ya ecran, imikorere yoroshye, igishushanyo gisanzwe cyishyuwe.Schneider ibice byamashanyarazi.

· R22, CFC Ubuntu R407C, R134A kugirango uhitemo.

· 380V-415V / 50HZ3PH kubishushanyo mbonera, Igice cya Chiller gishobora gutangwa ukurikije ibisabwa bitandukanye.

· Agace gato ko kwishyiriraho gasabwa, nta mpamvu yo guhumeka.

HTS-W 1
HTS-W 2



Kurinda Umutekano



-Compressor kurinda imbere,

-kurinda kurubu

-kurinda umuvuduko muke

-kurinda ubushyuhe

-Ibimenyetso byo gusohora ubushyuhe bukabije

-kurinda igipimo cyo kugabanuka

-icyiciro gikurikiranye / icyiciro kibuze kurinda

-kurinda urwego rukonje

-anti kurinda ubukonje

-kurinda ubushyuhe bukabije



Serivise yuzuye

-Itsinda ryabakozi: Itsinda ryubwubatsi rifite uburambe bwimyaka 15 muri firigo yo gukonjesha inganda, itsinda ryabacuruzi bafite uburambe bwimyaka 7, itsinda rya Service rifite uburambe bwimyaka 10.

-Ikibazo cyakoreshejwe buri gihe gitangwa ukurikije ibisabwa.

-3 intambwe yo kugenzura ubuziranenge: kugenzura ubuziranenge bwinjira, kugenzura ubuziranenge bwibikorwa, kugenzura ubuziranenge busohoka.

-Amezi 12 garanti kubicuruzwa byose.Muri garanti, ikibazo icyo aricyo cyose cyatewe nubusembwa bwa chiller ubwacyo, serivisi yatanzwe kugeza ikibazo gikemutse.



Ibyiza bitanu byINTWARI-TECH



• Ibiranga imbaraga :Turi abanyamwuga kandi batanga isoko ya chiller yinganda bafite uburambe bwimyaka 20.

Ubuyobozi bw'umwuga :Abatekinisiye babigize umwuga kandi bafite uburambe & kugurisha itsinda rya serivise ku isoko ryo hanze, batanga igisubizo cyumwuga ukurikije ibisabwa.

• Gutanga vuba :1 / 2hp kugeza 50hp ubukonje bukonjesha mukigega kugirango uhite utanga.

• Abakozi bahamye :Abakozi bahamye barashobora kwemeza umusaruro ushimishije kandi mwiza.Kugirango serivisi zinoze kandi zishyigikire nyuma yo kugurisha.

Serivisi ya zahabu :Serivise yo guhamagara serivisi mugihe cyisaha 1, igisubizo gitangwa mugihe cyamasaha 4, hamwe nitsinda ryogushiraho no kubungabunga.



IMIKORESHEREZO YINTWARI

 Imurikagurisha


  • Mbere:
  • Ibikurikira:


  • 100ton amazi akonje screw chiller

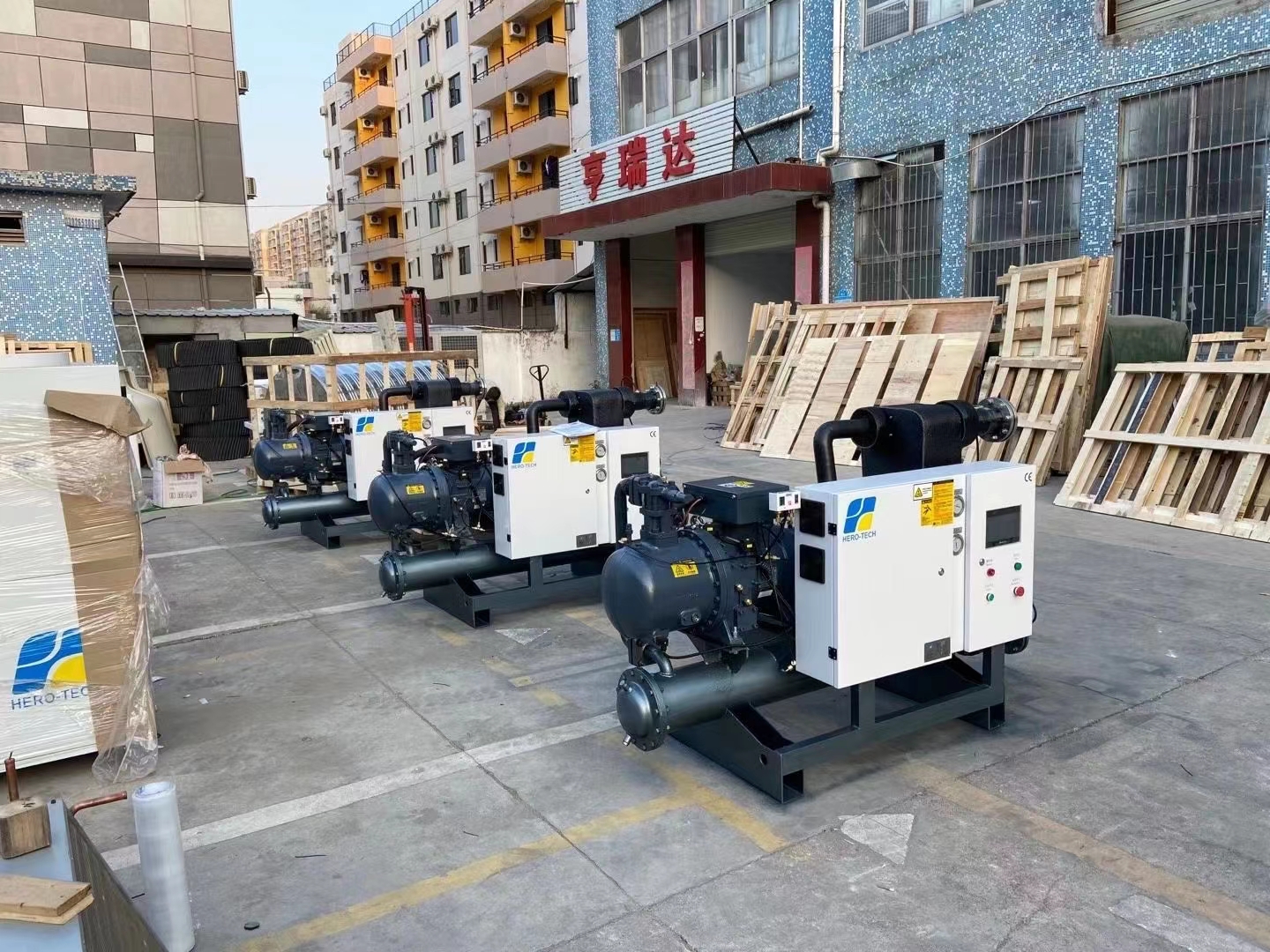

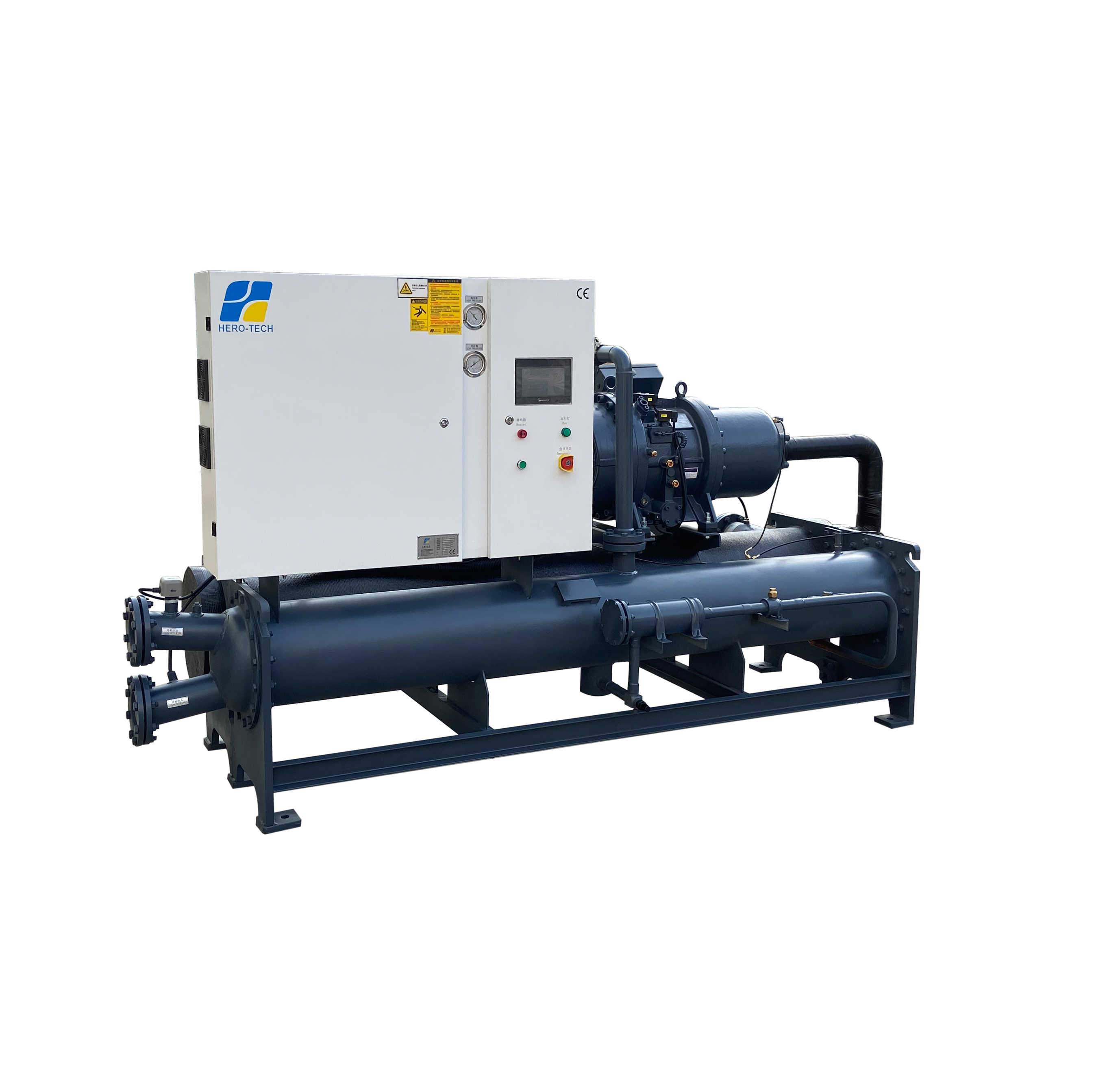

    HTS-150W150TON amazi akonje ya chillermmexport1611035425990D05A9278

    Amazi akonje ya chiller hamwe na compressor imwe

    Ubukonje bukonje kuva 30ton kugeza 300ton

    Icyitegererezo: HTS-40W ~ HTS-100W

    Icyitegererezo (HTS - ***)

    40W

    50W

    60W

    75W

    85W

    100W

    Ubushobozi bwo gukonjesha izina

    7 ℃

    Kcal / h

    108962

    143018

    153682

    205540

    242176

    284918

    kw

    126.7

    166.3

    178.7

    239.0

    281.6

    331.1

    12 ℃

    Kcal / h

    130118

    170796

    183524

    245444

    289218

    340302

    kw

    151.3

    198.6

    213.4

    285.4

    336.3

    395.7

    Imbaraga zinjiza

    kw

    28

    34.8

    38.5

    50.3

    56.7

    66.6

    Inkomoko y'ingufu

    3PH 380V ~ 415V 50HZ / 220V ~ 600V 60HZ

    Firigo

    Andika

    R22 / R407C

    Kwishyuza

    kg

    22

    27

    33

    42

    48

    55

    Kugenzura

    Ikwirakwizwa rya Thermostatic

    Compressor

    Andika

    Semi-hermermetic screw

    imbaraga

    kw

    28

    34.8

    38.5

    50.3

    56.7

    66.6

    Uburyo bwo gutangira

    Y- △

    Kugenzura ubushobozi

    0-25-50-75-100

    Imashini

    Andika

    Igikonoshwa nigituba (ss isahani yubushyuhe)

    Amazi akonje

    m³ / h

    20.5

    26.1

    29.5

    39.5

    45.6

    49.7

    Kugabanuka k'umuvuduko w'amazi

    kPa

    32

    35

    38

    42

    42

    45

    Guhuza imiyoboro

    santimetero

    3

    3

    3

    3

    3

    4

    Umuyoboro

    Andika

    Igikonoshwa

    Amazi akonje

    m³ / h

    25

    32.3

    36.6

    49.2

    56

    61.7

    Kugabanuka k'umuvuduko w'amazi

    kPa

    42

    42

    43

    43

    43

    45

    Guhuza imiyoboro

    santimetero

    3

    3

    3

    3

    3

    4

    Ibikoresho byumutekano

    Kurinda compressor imbere, hejuru yuburinzi bugezweho, kurinda umuvuduko mwinshi / muke, hejuru yubushyuhe bwo kurinda ubushyuhe, kurinda umuvuduko wikigereranyo, icyiciro gikurikiranye / icyiciro cyo kubura kurinda, gukonjesha kurwego rwo hasi, kurinda ubukonje, kurinda ubushyuhe bukabije

    Igipimo

    Uburebure

    mm

    2500

    2550

    2600

    2800

    2800

    2900

    Ubugari

    mm

    780

    780

    780

    950

    950

    950

    Uburebure

    mm

    1650

    1650

    1650

    1800

    1950

    1950

    Uburemere

    kg

    900

    1050

    1200

    1800

    1900

    2050

    Kwiruka

    kg

    1050

    1200

    1350

    1980

    2150

    2250

    Ibisobanuro byavuzwe haruguru bikurikije imiterere ikurikira:

    1. Amazi akonje yinjira / asohoka ubushyuhe 12 ℃ / 7 ℃
    2. Ubukonje bwo mu kirere / ubushyuhe busohoka 30 ℃ / 38 ℃
    3. Gazi R134A kugirango uhitemo
    4. VFD chiller kugirango uhitemo

    Dufite uburenganzira bwo guhindura ibisobanuro tutabimenyeshejwe.



    HTS120W ~ 270W



    Icyitegererezo (HTS - ***)

    120W

    150W

    180W

    200W

    240W

    270W

    Ubushobozi bwo gukonjesha izina

    7 ℃

    Kcal / h

    333680

    423550

    510926

    605526

    718616

    794984

    kw

    388.0

    492.5

    594.1

    704.1

    835.6

    924.4

    12 ℃

    Kcal / h

    398438

    505852

    610170

    723174

    858194

    949354

    kw

    463.3

    588.2

    709.5

    840.9

    997.9

    1103.9

    Imbaraga zinjiza

    kw

    79.6

    98.6

    120.4

    140.1

    166.8

    184.7

    Inkomoko y'ingufu

    3PH 380V ~ 415V 50HZ / 220V ~ 600V 60HZ

    Firigo

    Andika

    R22 / R407C

    Kwishyuza

    kg

    68

    88

    110

    121

    143

    165

    Kugenzura

    Ikwirakwizwa rya Thermostatic

    Compressor

    Andika

    Semi-hermetic screw

    imbaraga

    kw

    79.6

    98.6

    120.4

    140.1

    166.8

    184.7

    Uburyo bwo gutangira

    Y- △

    Kugenzura ubushobozi

    0-25-50-75-100

    Imashini

    Andika

    Igikonoshwa nigituba (ss isahani yubushyuhe)

    Amazi akonje

    m³ / h

    62.4

    81

    98

    115

    135.7

    153

    Kugabanuka k'umuvuduko w'amazi

    kPa

    40

    43

    45

    45

    43

    47

    Guhuza imiyoboro

    santimetero

    4

    5

    6

    6

    6

    6

    Umuyoboro

    Andika

    Igikonoshwa

    Amazi akonje

    m³ / h

    77

    101

    125

    125

    170

    191

    Kugabanuka k'umuvuduko w'amazi

    kPa

    48

    46

    48

    48

    45

    47

    Guhuza imiyoboro

    santimetero

    4

    3 * 2

    3 * 2

    4 * 2

    4 * 2

    4 * 2

    Ibikoresho byumutekano

    Kurinda compressor imbere, hejuru yuburinzi bugezweho, kurinda umuvuduko mwinshi / muke, hejuru yubushyuhe bwo kurinda ubushyuhe, kurinda umuvuduko wikigereranyo, icyiciro gikurikiranye / icyiciro cyo kubura kurinda, gukonjesha kurwego rwo hasi, kurinda ubukonje, kurinda ubushyuhe bukabije

    Igipimo Uburebure

    mm

    3000

    3300

    3800

    3900

    4300

    4500

    Ubugari

    mm

    1200

    1380

    1380

    1380

    1480

    1480

    Uburebure

    mm

    1580

    1630

    1750

    1750

    1780

    1780

    Uburemere

    kg

    2500

    2650

    3150

    3350

    3850

    4160

    Kwiruka

    kg

    2700

    2900

    3400

    3650

    4150

    4460

    Ibisobanuro byavuzwe haruguru bikurikije imiterere ikurikira:

    1. Amazi akonje yinjira / asohoka ubushyuhe 12 ℃ / 7 ℃
    2. Ubukonje bwo mu kirere / ubushyuhe busohoka 30 ℃ / 38 ℃
    3. Gazi R134A kugirango uhitemo
    4. VFD chiller kugirango uhitemo

    Dufite uburenganzira bwo guhindura ibisobanuro tutabimenyeshejwe.

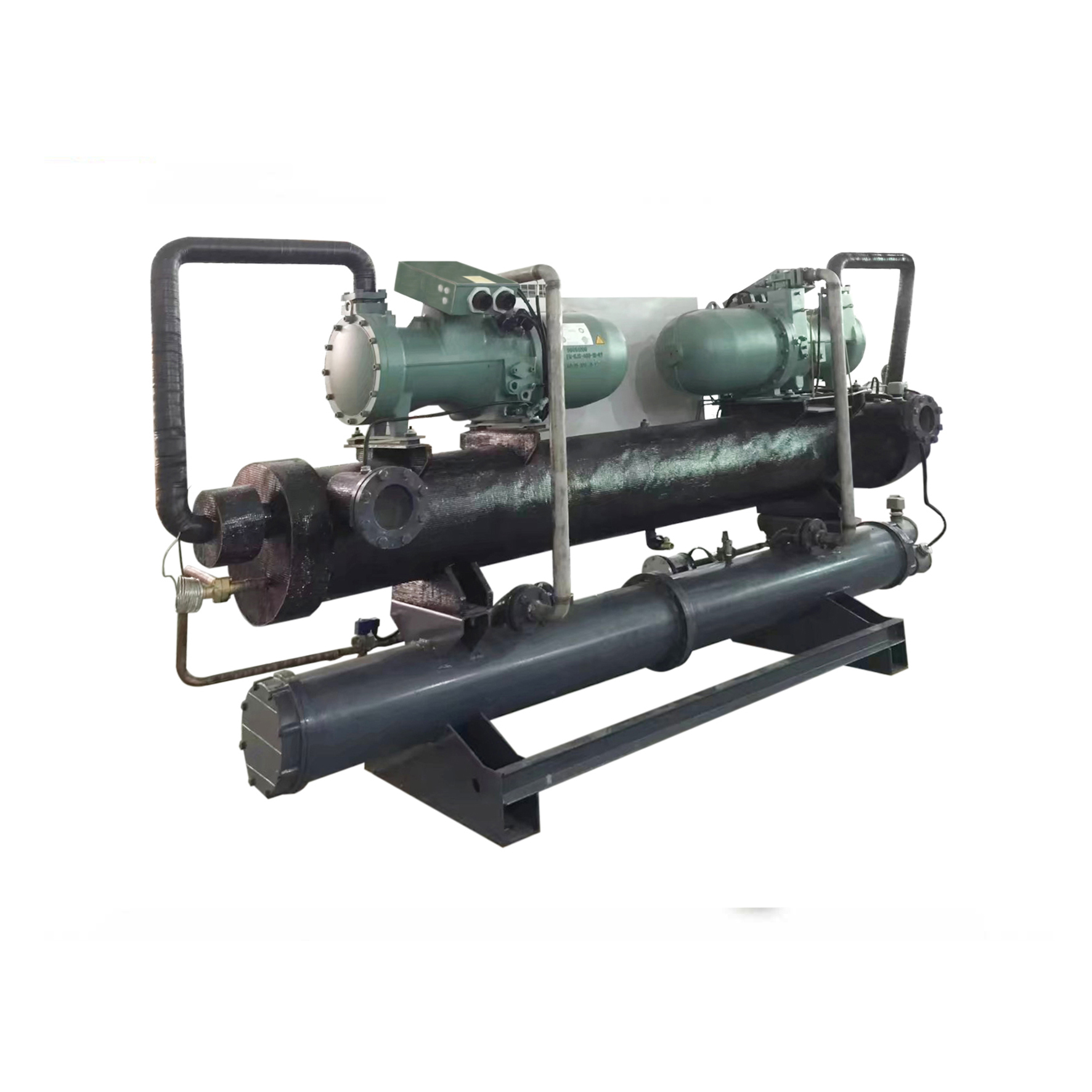

    Amazi akonje Amashanyarazi akonje hamwe na compressor ebyiri

    HTS-100WD ~ HTS-300WD

    Icyitegererezo (HTS - ***)

    100WD

    120WD

    150WD

    180WD

    200WD

    240W

    280W

    300WD

    Ubushobozi bwo gukonjesha izina

    7 ℃

    Kcal / h

    286036

    307364

    411080

    511872

    569836

    667360

    794468

    847100

    kw

    332.6

    357.4

    478.0

    595.2

    662.6

    776.0

    923.8

    985.0

    12 ℃

    Kcal / h

    341592

    367048

    490888

    611288

    680604

    796876

    948924

    1011704

    kw

    397.2

    426.8

    570.8

    710.8

    791.4

    926.6

    1103.4

    1176.4

    Imbaraga zinjiza

    kw

    69.6

    77

    100.6

    123.4

    133.2

    159.2

    183.8

    197.2

    Inkomoko y'ingufu

    3PH 380V ~ 415V 50HZ / 220V ~ 600V 60HZ

    Firigo

    Andika

    R22 / C407C

    Kwishyuza

    kg

    27 * 2

    33 * 2

    42 * 2

    48 * 2

    55 * 2

    68 * 2

    77 * 2

    88 * 2

    Kugenzura

    Ikwirakwizwa rya Thermostatic

    Compressor

    Andika

    Semi-hermetic screw

    Imbaraga

    kw

    34.8 * 2

    38.5 * 2

    50.3 * 2

    61.7 * 2

    66.6 * 2

    79.6 * 2

    91.9 * 2

    98.6 * 2

    Uburyo bwo gutangira

    Y- △

    Kugenzura ubushobozi

    0-25-50-75-100

    Imashini

    Andika

    Igikonoshwa

    Amazi akonje

    m³ / h

    52.2

    59

    79

    91.2

    99.4

    124.8

    151.6

    162

    Kugabanuka k'umuvuduko w'amazi

    kPa

    42

    42

    46

    43

    45

    45

    43

    48

    Guhuza imiyoboro

    santimetero

    4

    4

    5

    6

    6

    6

    6

    8

    Umuyoboro

    Andika

    Amazi akonje

    m³ / h

    64.6

    73.2

    98.4

    112

    123.4

    154

    191

    202

    Kugabanuka k'umuvuduko w'amazi

    kPa

    41

    42

    42

    45

    48

    46

    48

    48

    Guhuza imiyoboro

    santimetero

    4

    4

    3 * 2

    3 * 2

    4 * 2

    4 * 2

    4 * 2

    5 * 2

    Ibikoresho byumutekano

    Kurinda compressor imbere, hejuru yuburinzi bugezweho, kurinda umuvuduko mwinshi / muke, hejuru yubushyuhe bwo kurinda ubushyuhe, kurinda umuvuduko wikigereranyo, icyiciro gikurikiranye / icyiciro cyo kubura kurinda, gukonjesha kurwego rwo hasi, kurinda ubukonje, kurinda ubushyuhe bukabije

    Igipimo Uburebure

    mm

    2800

    2950

    3150

    3480

    3480

    3650

    3650

    3750

    Ubugari

    mm

    780

    810

    850

    875

    895

    1120

    1220

    1300

    Uburebure

    mm

    1650

    1650

    1750

    1850

    1850

    1950

    1950

    2100

    Uburemere

    kg

    1850

    2200

    2650

    2800

    3450

    3950

    4100

    4450

    Kwiruka

    kg

    2150

    2500

    2970

    3400

    4160

    4350

    4700

    5050

    Ibisobanuro byavuzwe haruguru bikurikije imiterere ikurikira:

    1. Amazi akonje yinjira / asohoka ubushyuhe 12 ℃ / 7 ℃
    2. Ubukonje bwo mu kirere / ubushyuhe busohoka 30 ℃ / 38 ℃
    3. Gazi R134A kugirango uhitemo
    4. VFD chiller kugirango uhitemo

    Dufite uburenganzira bwo guhindura ibisobanuro tutabimenyeshejwe.

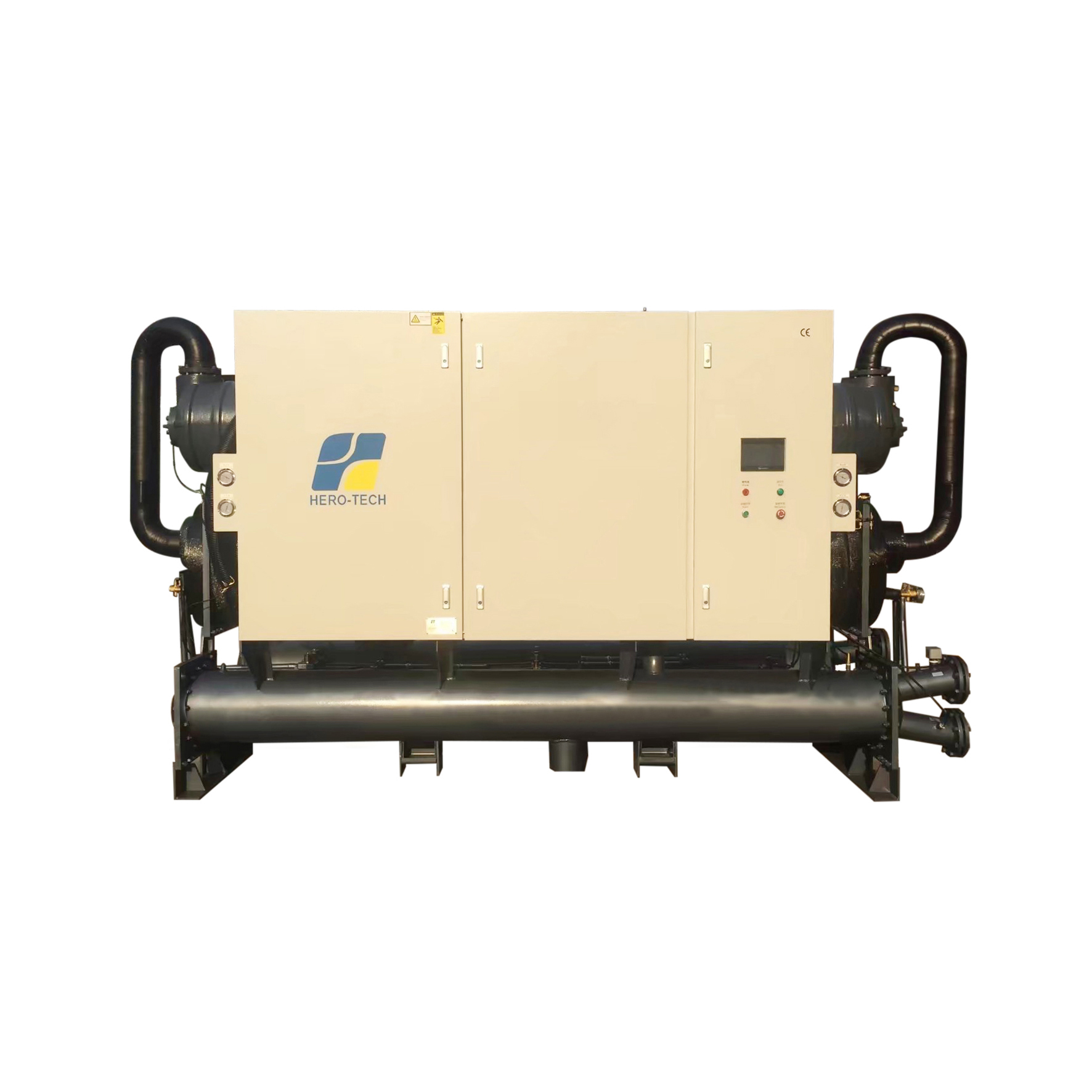

    HTS-360WD ~ HTS-540WD

    Icyitegererezo (HTS - ***)

    360WD

    400WD

    460WD

    480WD

    540WD

    Ubushobozi bwo gukonjesha izina

    7 ℃

    Kcal / h

    1021852

    1211052

    1320616

    1437232

    1589968

    kw

    1188.2

    1408.2

    1535.6

    1671.2

    1848.8

    12 ℃

    Kcal / h

    1220340

    1446348

    1577068

    1681988

    1898708

    kw

    1419.0

    1681.8

    1833.8

    1955.8

    2207.8

    Imbaraga zinjiza

    kw

    240.8

    280.2

    314

    333.6

    369.4

    Inkomoko y'ingufu

    3PH 380V ~ 415V 50HZ / 60HZ

    Firigo

    Andika

    R22

    Kwishyuza

    kg

    110 * 2

    121 * 2

    132 * 2

    143 * 2

    165 * 2

    Kugenzura

    Ikwirakwizwa rya Thermostatic

    Compressor

    Andika

    Semi-hermetic screw

    Imbaraga

    kw

    120 * 2

    140 * 2

    157 * 2

    167 * 2

    185 * 2

    Uburyo bwo gutangira

    Y- △

    Kugenzura ubushobozi

    0-25-50-75-100

    Imashini

    Andika

    Igikonoshwa

    Amazi akonje

    m³ / h

    169

    231.4

    254

    271.4

    306

    Kugabanuka k'umuvuduko w'amazi

    kPa

    44

    45

    42

    45

    46

    Guhuza imiyoboro

    santimetero

    8

    8

    10

    10

    10

    Umuyoboro

    Andika

    Igikonoshwa

    Amazi akonje

    m³ / h

    248

    290

    318

    340

    382

    Kugabanuka k'umuvuduko w'amazi

    kPa

    46

    42

    48

    48

    48

    Guhuza imiyoboro

    santimetero

    5 * 2

    5 * 2

    5 * 2

    6 * 2

    6 * 2

    Ibikoresho byumutekano

    Kurinda compressor imbere, hejuru yuburinzi bugezweho, kurinda umuvuduko mwinshi / muke, hejuru yubushyuhe bwo kurinda ubushyuhe, kurinda umuvuduko wikigereranyo, icyiciro gikurikiranye / icyiciro cyo kubura kurinda, gukonjesha kurwego rwo hasi, kurinda ubukonje, kurinda ubushyuhe bukabije

    Igipimo Uburebure

    mm

    4230

    4230

    4350

    4350

    4420

    Ubugari

    mm

    1380

    1480

    1450

    1560

    1650

    Uburebure

    mm

    2150

    2250

    2250

    2300

    2450

    Uburemere

    kg

    5000

    5250

    5500

    5750

    6000

    Kwiruka

    kg

    5700

    5950

    6100

    6350

    6600

    Ibisobanuro byavuzwe haruguru bikurikije imiterere ikurikira:

    1. Amazi akonje yinjira / asohoka ubushyuhe 12 ℃ / 7 ℃
    2. Ubukonje bwo mu kirere / ubushyuhe busohoka 30 ℃ / 38 ℃
    3. Gazi R134A kugirango uhitemo
    4. VFD chiller kugirango uhitemo

    Dufite uburenganzira bwo guhindura ibisobanuro tutabimenyeshejwe.



    Compressor enye

    HTS-300WF ~ HTS-1080WF

    Icyitegererezo (HTS - ***)

    300WF

    340WF

    400WF

    480WF

    600WF

    680WF

    800WF

    920WF

    950WF

    1080WF

    Ubushobozi bwo gukonjesha izina

    7 ℃

    Kcal / h

    822160

    968704

    1139672

    1334720

    1694200

    1997608

    2422104

    2641232

    2874120

    3179936

    kw

    956.0

    1126.4

    1325.2

    1552.0

    1970.0

    2322.8

    2816.4

    3071.2

    3342.0

    3697.6

    ton

    271

    320

    376

    441

    560

    660

    800

    873

    950

    1051

    12 ℃

    Kcal / h

    981776

    1156872

    1361208

    1593752

    2023408

    2385640

    2892696

    3154136

    3363976

    3797416

    kw

    1141.6

    1345.2

    1582.8

    1853.2

    2352.8

    2774.0

    3363.6

    3667.6

    3911.6

    4415.6

    ton

    324

    382

    450

    526

    668

    788

    956

    1042

    1112

    1255

    Imbaraga zinjiza

    kw

    201

    226

    266

    318

    394

    466

    560

    628

    666

    738

    Inkomoko y'ingufu

    3PH 380V ~ 415V 50HZ / 220V ~ 600V 60HZ

    Gukonjesha Andika

    R22 / R407C

    Kwishyuza

    kg

    42 * 4

    48 * 4

    55 * 4

    68 * 4

    88 * 4

    108 * 4

    121 * 4

    132 * 4

    143 * 4

    165 * 4

    Kugenzura

    Ikwirakwizwa rya Thermostatic

    Compressor Andika

    Semi-hermetic screw

    Imbaraga

    kw

    50 * 4

    56.5 * 4

    66.5 * 4

    79.5 * 4

    98.5 * 4

    116 * 4

    140 * 4

    157 * 4

    166 * 4

    184 * 4

    Uburyo bwo gutangira

    Y- △

    Kugenzura ubushobozi

    0-25-50-75-100

    Imashini

    Andika

    Igikonoshwa

    Amazi akonje

    m³ / h

    158

    182.4

    198.8

    249.6

    324

    382.8

    462.8

    508

    542.8

    612

    Kugabanuka k'umuvuduko w'amazi

    kPa

    46

    43

    45

    45

    48

    43

    45

    42

    45

    46

    Guhuza imiyoboro

    santimetero

    8 * 2

    8 * 2

    10 * 2

    10 * 2

    10 * 2

    10 * 2

    12 * 2

    12 * 2

    8 * 4

    8 * 4

    Umuyoboro

    Andika

    Igikonoshwa

    Amazi akonje

    m³ / h

    196.8

    224

    246.8

    308

    404

    476

    580

    636

    680

    764

    Kugabanuka k'umuvuduko w'amazi

    kPa

    42

    45

    48

    46

    48

    45

    42

    48

    48

    48

    Guhuza imiyoboro

    santimetero

    6 * 2

    6 * 2

    8 * 2

    8 * 2

    8 * 2

    4 * 4

    4 * 4

    6 * 4

    6 * 4

    6 * 4

    Ibikoresho byumutekano

    Kurinda compressor imbere, hejuru yuburinzi bugezweho, kurinda umuvuduko mwinshi / muke, hejuru yubushyuhe bwo kurinda ubushyuhe, kurinda umuvuduko wikigereranyo, icyiciro gikurikiranye / icyiciro cyo kubura kurinda, gukonjesha kurwego rwo hasi, kurinda ubukonje, kurinda ubushyuhe bukabije

    Igipimo Uburebure

    mm

    3150

    3480

    3480

    3650

    3750

    3750

    4230

    4350

    4350

    4420

    Ubugari

    mm

    1700

    1750

    1790

    2240

    2600

    2900

    2960

    2900

    3300

    3300

    Uburebure

    mm

    1750

    1850

    1850

    1950

    2100

    2150

    2250

    2250

    2300

    2450

    Uburemere

    kg

    2650

    2800

    3450

    3950

    4450

    4700

    5250

    5500

    5750

    6000

    Kwiruka

    kg

    3200

    3380

    4160

    4760

    5270

    5460

    6100

    6400

    6680

    6970

    Ibisobanuro byavuzwe haruguru bikurikije imiterere ikurikira:

    1. Amazi akonje yinjira / asohoka ubushyuhe 12 ℃ / 7 ℃
    2. Ubukonje bwo mu kirere / ubushyuhe busohoka 30 ℃ / 38 ℃
    3. Gazi R134A kugirango uhitemo
    4. VFD chiller kugirango uhitemo

    Dufite uburenganzira bwo guhindura ibisobanuro tutabimenyeshejwe.



    Gupakira ibicuruzwa

    icyemezo

    Q1: Wadufasha gushimangira icyitegererezo cyumushinga wacu?
    A1: Yego, dufite injeniyeri yo kugenzura amakuru arambuye no guhitamo icyitegererezo cyiza kuri wewe.Hashingiwe kuri ibi bikurikira:
    1) Ubushobozi bwo gukonjesha;
    2) Niba utabizi, urashobora gutanga igipimo cyimodoka kuri mashini yawe, ubushyuhe muri hamwe nubushyuhe bivuye mubice ukoresha;
    3) Ubushyuhe bwibidukikije;
    4) Ubwoko bwa firigo, R22, R407c cyangwa izindi, pls irasobanura;
    5) Umuvuduko;
    6) Inganda zikoreshwa;
    7) Amapompo atemba nibisabwa;
    8) Ibindi bisabwa bidasanzwe.





    Q2: Nigute ushobora kwemeza ibicuruzwa byawe bifite ireme?
    A2: Ibicuruzwa byacu byose hamwe nicyemezo cya CE hamwe nisosiyete yacu twubahiriza byimazeyo sisitemu yo gucunga neza ISO900.Dukoresha ibikoresho byamamare byamamare kwisi yose, nka DANFOSS, COPELAND, SANYO, BITZER, compressor ya HANBELL, amashanyarazi ya Schneider, ibikoresho bya firigo ya DANFOSS / EMERSON.
    Ibice bizageragezwa byuzuye mbere yipaki kandi Gupakira bizasuzumwa neza.





    Q3: Garanti ni iki?
    A3: garanti yumwaka 1 kubice byose;Ubuzima bwose bukora ubusa!





    Q4: Wowe uri uruganda?
    A4: Yego, dufite imyaka irenga 23 mubucuruzi bwo gukonjesha inganda.Uruganda rwacu ruherereye i Shenzhen;Murakaza neza kudusura igihe icyo aricyo cyose.Gira na patenti kubishushanyo mbonera.





    Q5: Nigute nshobora gutumiza?
    A5: Send us enquiry via email: sales@szhero-tech.com, call us via Cel number +86 15920056387 directly.
