Product introduction

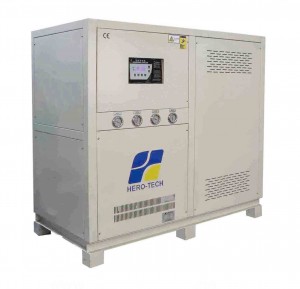

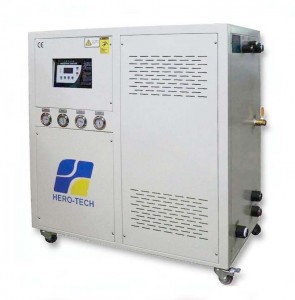

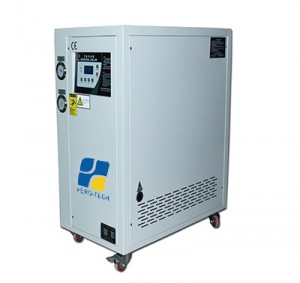

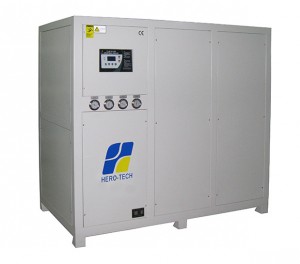

HTLT-W water cooled low temperature industrial chiller is widely applied in small-medium scale low temperature industrial cooling, such as chemical industry, pharmacy, food industry, bioengineering industry,etc.
Not all chillers are created equal. For efficient cooling and long-lasting performance, you can depend on HERO-TECH of Cooling Products for all your cooling needs.
HERO-TECH always present qualified, best and solution based service.
Design features
·The temperature is adjustable in the range of -35℃ to +5℃
·Original famous brand Semi-hermetic piston compressor adopted,feature sufficient cooling capacity,stable performance,and excellent quality
·Schneider brand electric components ensure the chiller unit running stably with long service time
·Equipped famous brand water pump,with large flow,high efficiency and durability
·Compact design,easy to install and operate,convenient to clean and maintenance
·High efficient shell and tube evaporator adopted, ensuring high cooling efficiency
·Shell and tube condenser
·380V-415V/50HZ 3PH for standard design.Different design available on request
·R22,R407C,R404a refrigerant for option
·Refrigerant circuit with top brand hermetic scroll compressor Control panel complete with associated control equipment with digital microprocessor control for set and actual temperatures and safety alarms
·Removable side panels for ease of access
·Process circuit with thermal insulation
·Sight glass with low level switch
·Swivel wheels for easy positioning
Application
Pharmaceutical / chemical / bioengineering industry / food industry
Dependable, versatile, high-efficiency cooling.
HERO-TECH chillers deliver value to a wide variety of applications with enhanced energy-efficiency options.
Comprehensive service
-Processional Team: Engineering team with average 15 years of experience in industrial refrigeration, sales team with average 7 years of experience, Service team with average 10 years of experience.
-Customized solution always supplied according to requirements.
-3 steps quality control: incoming quality control, process quality control, outgoing quality control.
-12 months guarantee for all products. Within warranty, any problem caused by defects of chiller itself, service offered till the problem solved.
Unit Safety Protection
-Compressor inner protection,
-over current protection,
-high/low pressure protection,
-over temperature protection,
-High discharge temperature alarm
-flow rate protection,
-phase sequence/phase missing protection,
-low level coolant protection,
-anti freezing protection,
-exhaust overheat protection
Five advantages of HERO-TECH
•Brand strength ：We are the professional and top supplier of industrial chiller with 20 years of experience.
•Professional Guidance：Professional and experienced technician & sales team service to the oversea market, offering professional solution according to requirements.
•Fast delivery ：1/2hp to 50hp air-cooled chillers in stock for immediately delivery.
•Stable staffs ：Stable staffs can ensure stable and high quality productivity. To ensure high quality service and efficient after-sales support.
•Golden service ：Service call response within 1 hour, solution offered within 4hrs, and own oversea installation and maintenance team.
| Model(HTLT-***) |
3A |
5A |
6A |
8A |
10AD |
12AD |
15AD |
20AD |
|||
| Nominal cooling capacity |
-10℃ |
kw |
3.52 |
6.27 |
7.53 |
9.44 |
12.54 |
15.06 |
18.88 |
26.02 |
|
|
-20℃ |
1.75 |
3.5 |
3.77 |
5.55 |
7 |
7.54 |
9.3 |
13.3 |
|||
|
-30℃ |
0.86 |
1.82 |
2.04 |
2.98 |
3.64 |
4.08 |
4.92 |
6.54 |
|||
| Input Power |
kw |
2.79 |
4.71 |
5.82 |
7.04 |
9.32 |
11.54 |
14.28 |
18.34 |
||
| Power source |
3PH 380V~415V 50HZ/60HZ |
||||||||||
| Refrigerant | Type |
R22/R404A |
|||||||||
| Control |
Thermostatic expansion valve |
||||||||||
| Compressor | Type |
hermetic scroll (Semi-hermetic piston) |
|||||||||
| Motor power |
kw |
2.42 |
4.16 |
5.27 |
6.49 |
4.16*2 |
5.27*2 |
6.49*2 |
8.37*2 |
||
|
Evaporator |
Type |
Shell and tube(ss plate heat exchanger) |
|||||||||
|
Chilled water volume |
-10℃ |
m³/h |
0.6 |
1.07 |
1.29 |
1.62 |
2.15 |
2.59 |
3.24 |
4.47 |
|
|
-20℃ |
0.3 |
0.6 |
0.64 |
0.95 |
1.2 |
1.29 |
1.59 |
2.28 |
|||
|
-30℃ |
0.14 |
0.31 |
0.35 |
0.51 |
0.62 |
0.7 |
0.84 |
1.12 |
|||
| Pipe connection |
inch |
1 |
1 |
1 |
1-1/2 |
2 |
2 |
2 |
2 |
||
| Condenser | Type |
air cooled type high efficiency finned copper tube |
|||||||||
| Pump | Power |
kw |
0.37 |
0.55 |
0.55 |
0.55 |
1 |
1 |
1.3 |
1.6 |
|
| Head |
m |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
||
| Safety devices |
compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection |
||||||||||
| Dimension | Length |
mm |
1030 | 1180 | 1180 | 1430 | 1630 | 1630 | 1910 | 2070 | |
| Width |
mm |
560 | 580 | 580 | 700 | 760 | 760 | 850 | 950 | ||
| Height |
mm |
1270 | 1305 | 1305 | 1470 | 1680 | 1680 | 1840 | 1980 | ||
| Net weight |
kg |
135 | 175 | 210 | 310 | 450 | 530 | 750 | 835 | ||
|
The above specifications are according to the following design conditions
|
|||||||||||
| Model(HTSL-***) |
40A |
50A |
60A |
75A |
85A |
|||
| Nominal cooling capacity |
-10℃ |
kw |
47 |
61.6 |
66.3 |
88.7 |
105.2 |
|
|
-20℃ |
27 |
35.6 |
38.2 |
51.2 |
60.9 |
|||
|
-30℃ |
12.8 |
17 |
18.2 |
24.4 |
29.2 |
|||
| Input Power |
kw |
40.7 |
50.3 |
56.3 |
73.6 |
82.6 |
||
| Power source |
3PH 380V~415V 50HZ/60HZ |
|||||||
| Refrigerant | Type |
R22/R404A |
||||||
| Charge |
kg |
28 |
35 |
42 |
52 |
59 |
||
| Control |
Thermostatic expansion valve |
|||||||
| Compressor | Type |
Semi-hermetic screw |
||||||
| Motor power |
kw |
37.1 |
46.7 |
51.5 |
67.2 |
76.2 |
||
| Start mode |
Y-△ |
|||||||
| Capacity control |
％ |
0-25-50-75-100 |
||||||
|
Evaporator |
Type |
Shell and tube(ss plate heat exchanger) |
||||||
|
Chilled water volume |
-10℃ |
m³/h |
8.08 |
10.59 |
11.4 |
15.25 |
18.09 |
|
|
-20℃ |
4.64 |
6.12 |
6.57 |
8.8 |
10.47 |
|||
|
-30℃ |
2.2 |
2.92 |
3.13 |
4.19 |
5.02 |
|||
| Water pressure drop |
kPa |
32 |
35 |
38 |
42 |
42 |
||
| Pipe connection |
inch |
3 |
3 |
3 |
3 |
3 |
||
| Condenser | Type |
air cooled type high efficiency finned copper tube |
||||||
| Fan | Type |
big volume & low noise axil fan |
||||||
| Power |
kw |
0.6*6 |
0.6*6 |
0.8*6 |
0.8*8 |
0.8*8 |
||
| Air volume |
m³/h |
53520 |
53520 |
74520 |
99360 |
99360 |
||
| Safety devices |
compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection |
|||||||
| Dimension | Length |
mm |
2500 |
2650 |
2950 |
3310 |
4000 |
|
| Width |
mm |
1700 |
1800 |
1800 |
1870 |
2000 |
||
| Height |
mm |
1960 |
2060 |
2160 |
2200 |
2050 |
||
| Net weight |
kg |
1350 |
1650 |
1950 |
2250 |
2400 |
||
| Running weight |
kg |
1450 |
1750 |
2100 |
2450 |
2600 |
||
|
The above specifications are according to the following design conditions
|
||||||||
| Model(HTSL-***) |
90A |
100A |
120A |
135A |
|||
| Nominal cooling capacity |
-10℃ |
kw |
111 |
123.6 |
144.5 |
175.9 |
|
|
-20℃ |
64.2 |
71.7 |
83.6 |
101.9 |
|||
|
-30℃ |
30.7 |
34.3 |
40 |
48.8 |
|||
| Input Power |
kw |
88.2 |
95.5 |
115.4 |
136.2 |
||
| Power source |
3PH 380V~415V 50HZ/60HZ |
||||||
| Refrigerant | Type |
R22/R404A |
|||||
| Charge |
kg |
63 |
70 |
84 |
98 |
||
| Control |
Thermostatic expansion valve |
||||||
| Compressor | Type |
Semi-hermetic screw |
|||||
| Motor power |
kw |
81 |
88.3 |
105.8 |
126.6 |
||
| Start mode |
Y-△ |
||||||
| Capacity control |
％ |
0-25-50-75-100 |
|||||
|
Evaporator |
Type |
Shell and tube(ss plate heat exchanger) |
|||||
|
Chilled water volume |
-10℃ |
m³/h |
19.09 |
21.25 |
24.85 |
30.25 |
|
|
-20℃ |
11.04 |
12.33 |
14.37 |
17.52 |
|||
|
-30℃ |
5.28 |
5.89 |
6.88 |
8.39 |
|||
| Water pressure drop |
kPa |
45 |
43 |
43 |
41 |
||
| Pipe connection |
inch |
4 |
4 |
4 |
5 |
||
| Condenser | Type |
air cooled type high efficiency finned copper tube |
|||||
| Fan | Type |
big volume & low noise axil fan |
|||||
| Power |
kw |
0.9*8 |
0.9*8 |
0.8*12 |
0.8*12 |
||
| Air volume |
m³/h |
120960 |
120960 |
149040 |
149040 |
||
| Safety devices |
compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection |
||||||
| Dimension | Length |
mm |
4300 |
4300 |
5650 |
5650 |
|
| Width |
mm |
2000 |
2000 |
2000 |
2000 |
||
| Height |
mm |
2170 |
2170 |
2070 |
2070 |
||
| 70Net weight |
kg |
2600 |
2860 |
3000 |
3250 |
||
| Running weight |
kg |
2850 |
3110 |
3300 |
3550 |
||
|
The above specifications are according to the following design conditions
|
|||||||
Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
1) Cooling capacity;
2) If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part;
3) Environment temperature;
4) Refrigerant type, R22, R407c or other, pls clarify;
5) Voltage;
6) Application industry;
7) Pump flow and pressure requirements;
8) Any other special requirements.
Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.
Q3: What’s the warranty?
A3: 1 year warranty for all parts; Whole life labor free!
Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.
