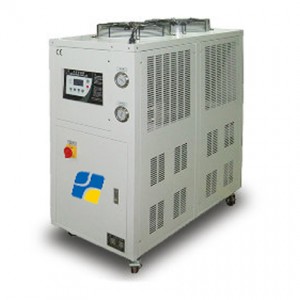

Laser Chiller

Short Description:

Product Introduction In laser system. Laser source and beam controller would need to be cooled. Cooling water is normally required in the rage of 15℃ to 22℃, with ±1℃ or 2℃ accuracy and sometimes within ± 0.1℃. Laser has special requirements for conductivity and corrosiveness of cooling water, normally water loop should be stainless steel materials.   Application Laser chiller is mainly applied for laser marker,laser engraving machine,laser welder, laser cutting machine, laser inject mac...


Product Detail

Product parameters

packing and transport

certificate

faq

Product Introduction

In laser system. Laser source and beam controller would need to be cooled. Cooling water is normally required in the rage of 15℃ to 22℃, with ±1℃ or 2℃ accuracy and sometimes within ± 0.1℃. Laser has special requirements for conductivity and corrosiveness of cooling water, normally water loop should be stainless steel materials.



Application

Laser chiller is mainly applied for laser marker,laser engraving machine,laser welder, laser cutting machine, laser inject machine, etc, for maintaining required temperature of laser equipment, so to ensure normal running.

Dependable, versatile, high-efficiency cooling.

HERO-TECH chillers deliver value to a wide variety of applications with enhanced energy-efficiency options.



Design Features

-Large volume ss storage tank and SS coil evaporator.
-Built-in high pressure stainless steel chilled water pump. ensuring water quality and pressure.
-Precision filtering device can be offered upon request, including particulate matter filtration and deionizer ensuring high cooling water quality,extending laser and chiller’s service life.

-Multi-protection devices: Flow switch, water pressure switch, acoustic and optical alarm system.

-Protection signal output: Water flow alarm signal output, water level alarm signal output, temperature protection alarm signal output, ensuring laser and chiller running safely.

-Removable side panels for ease of access

-Process circuit with thermal insulation

-Sight glass with low level switch

-Swivel wheels for easy positioning

-Refrigerant circuit with top brand hermetic scroll compressor Control panel

-Complete with associated control equipment with digital microprocessor

-Control for set and actual temperatures and safety alarms

-Schneider brand electric components ensure the chiller unit running stably with long service time.

-Compact design,easy to install and operate,convenient to clean and maintenance.

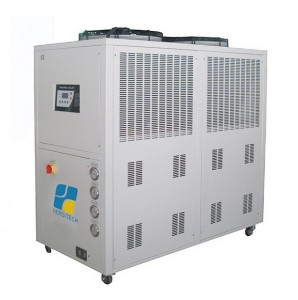

HTIA20-60

Comprehensive service

-Processional Team: Engineering team with average 15 years of experience in industrial refrigeration, sales team with average 7 years of experience, Service team with average 10 years of experience.

-Customized solution always supplied according to requirements.

-3 steps quality control: incoming quality control, process quality control, outgoing quality control.

-12 months guarantee for all products. Within warranty, any problem caused by defects of chiller itself, service offered till the problem solved.



Unit Safety Protection

-Compressor inner protection,

-over current protection,

-high/low pressure protection,

-over temperature protection,

-High discharge temperature alarm

-flow rate protection,

-phase sequence/phase missing protection,

-low level coolant protection,

-anti freezing protection,

-exhaust overheat protection



Five advantages of HERO-TECH

•Brand strength :We are the professional and top supplier of industrial chiller with 20 years of experience.

•Professional Guidance:Professional and experienced technician & sales team service to the oversea market, offering professional solution according to requirements.

•Fast delivery :1/2hp to 50hp air-cooled chillers in stock for immediately delivery.

•Stable staffs :Stable staffs can ensure stable and high quality productivity. To ensure high quality service and efficient after-sales support.

•Golden service :Service call response within 1 hour, solution offered within 4hrs, and own oversea installation and maintenance team.



Not all chillers are created equal. For efficient cooling and long-lasting performance, you can depend on HERO-TECH of Cooling Products for all your cooling needs.








  • Previous:
  • Next:

  • Model(HTL-***)

    1/2A

    1A

    1.5A

    2A

    3A

    5A

    6A

    8A

    10AD

    12AD

    15AD

    20AD

    Nominal cooling capacity

    Kcal/h

    1419

    2385

    3264

    4592

    7654

    11508

    14310

    18816

    23013

    28620

    36756

    46629

    kw

    1.65

    2.75

    3.79

    5.34

    8.9

    13.38

    16.64

    21.88

    26.76

    33.28

    42.74

    54.22

    Input power

    kw

    0.895

    1.4

    2.07

    2.24

    3.15

    4.71

    5.42

    7.15

    9.76

    11.02

    15.3

    18.6

    Power source

    1PH 220V 50HZ

    3PH 380V~415V 50HZ/60HZ

    Refrigerant Type

    R22

    Control

    capillary

    Thermostatic expansion valve

    Compressor Type

    Hermetic-rotary

    Hermetic-scroll

    Motor power

    kw

    0.45

    0.89

    1.52

    1.73

    2.5

    3.68

    4.31

    2.95*2

    3.68*2

    4.31*2

    5.95*2

    7.4*2

    Condenser Type

    Finned coil + low noise axial fan

    Air volume

    m³/h

    750

    1000

    1500

    2000

    3000

    5000

    6000

    8000

    10000

    12000

    15000

    20000

    Fan power

    kw

    0.095

    0.14

    0.18

    0.18

    0.14*2

    0.14*2

    0.18*2

    0.25*2

    0.45*2

    0.45*2

    0.6*2

    0.8*2

    Evaporator Type

    Shell and tube(ss plate heat exchanger)

    Chilled water volume

    m³/h

    0.258

    0.476

    0.59

    0.908

    1.36

    2.22

    2.6

    3.52

    4.44

    5.03

    7.1

    8.84

    Tank volume

    liter

    16

    16

    20

    20

    50

    60

    110

    120

    200

    200

    270

    350

    Pipe connection

    m³/h

    1/2

    1/2

    1/2

    1/2

    1

    1

    1

    1-1/2

    2

    2

    2

    2-1/2

    Pump Power

    kw

    0.37

    0.37

    0.37

    0.37

    0.37

    0.75

    0.75

    0.75

    1.5

    1.5

    2.2

    2.2

    Lift

    m

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    20

    Flow switch

    Operate flow>3.5L/min, release flow<1.4L/min

    Operate flow>16L/min, release flow<10L/min

    Safety devices

    Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection

    Dimension Length

    mm

    550

    600

    650

    650

    1030

    1030

    1170

    1350

    1550

    1550

    1830

    2010

    Width

    mm

    350

    400

    520

    520

    560

    560

    610

    680

    760

    760

    850

    950

    Height

    mm

    755

    885

    1030

    1030

    1330

    1330

    1390

    1520

    1680

    1680

    1870

    1990

    Net weight

    kg

    45

    52

    75

    85

    132

    165

    183

    265

    345

    382

    580

    650

    Note:

    The above specifications are according to the following design conditions:
    1.Chilled water inlet/outlet temperature 12℃/7℃
    2.Cooling air inlet/outlet temperature 30℃/38℃
    We reserve the right to modify the specifications without further notice.

    Packing shipment

    certificate

    Q1: Could you help us to recommend the model for our project?
    A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
    1)    Cooling capacity;
    2)    If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part;
    3)    Environment temperature;
    4)    Refrigerant type, R22, R407c or other, pls clarify;
    5)    Voltage;
    6)    Application industry;
    7)    Pump flow and pressure requirements;
    8)    Any other special requirements.





    Q2: How to ensure your product with good quality?
    A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
    The units will be fully tested before package and The packing will be carefully checked.





    Q3: What’s the warranty?
    A3: 1 year warranty for all parts; Whole life labor free!





    Q4: Are you a manufacturer?
    A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.





    Q5: How can I place an order?
    A5: Send us enquiry via email: sales@szhero-tech.com, call us via Cel number +86 15920056387 directly.
